Multi-Hit Time to Digital Conversion

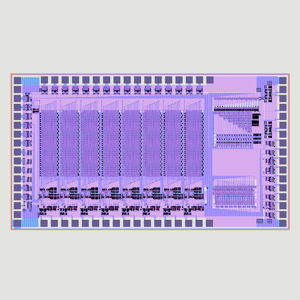

In 1991, the MTD-132 circuit was, by far, the most complex, sophisticated and complete Time to Digital Conversion (TDC) system ever created - and perhaps in ways it remains so to this day. Operating with 0.5 ns resolution, each chip contained 8 channels, each of which could record 16 time measurements in rapid succession with essentially zero dead-time. A patented stale-data detection and elimination circuit managed the accumulation of data, ensuring that unwanted “stale” data was removed from its memory. The MTD-132 won an IR-100 award for innovation.


Related publications:


  1. •[J12] S. Kleinfelder, J. T. Majors, K. A. Blumer, W. Farr, B. Manor, “The MTD132 - A New Sub-Nanosecond Multi-Hit Time-to-Digital Converter,” IEEE Transactions on Nuclear Science, Volume 38, Issue 2, Part 1-2, pages 97-101, April 1991.

  2. •United States Patent No. 5,384,713, awarded 1/24/95, for a time-sensitive signal processing circuit.

  3. •R&D-100 Award, 1991, for the 2 GHz MTD multi-channel time-to-digital converter circuit.



In collaboration with LeCroy Co.
